HY1602 Dual Frequency PC Platform Echosounder |
|
| Overview | |
| HY1602 Dual Frequency Echo Sounder System, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is an all-in-one PC based dual frequency echo sounder, which can output both echogram and chart paper result simultaneously. Its main features as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time reference, digitized depth, position heave and annotations. It is a perfect choice for surveying in the river, lake, ocean and so on. | |
| Features | |
Dual Frequency，and Double channel
Output both echogram and chart paper result simultaneously
Based on the computer platform and have a slave display
TVG/AVG dynamic adjustment, reinforced anti- jamming ability
Low noise receiving ability and space filter, Time filter adjustment
High speed USB interface, huge storage capacity
Echogram output for real time display, storage, playback and printing
Multi-ports communication for GPS, motion sensors and so on
Bundled data acquisition software like HYPACK, EIVA.
AC/DC Power supply
|
|
 |
|
| Specifications | |
| Frequency |
208KHZ/24KHZ |
| Transducer Beam | |
|
High Frequency
|
208KHZ, <= 8 degrees |
Low Frequency |
24KHZ, <= 20degrees |
Depth range for High Frequency |
0.5m-300m @ 208KH |
Depth range for Low Frequency |
1m-2000m @ 24KHZ |
Accuracy |
0.01m ± 0.1% @ 208K
0.10m ± 0.1% @ 24K |
|
Output power
|
200W @ 208KHZ
500W @ 24KHZ |
|
Power Supply
|
22-31V DC or 180-260V AC |
|
Consumption Power
|
100W |
Recording |
Echogram Large capability hard disk storage and Thermal chart paper recording |
Composition |
|
Main Unit |
|
Dimensions |
400 × 200 × 310mm |
Weight |
17.5kg |

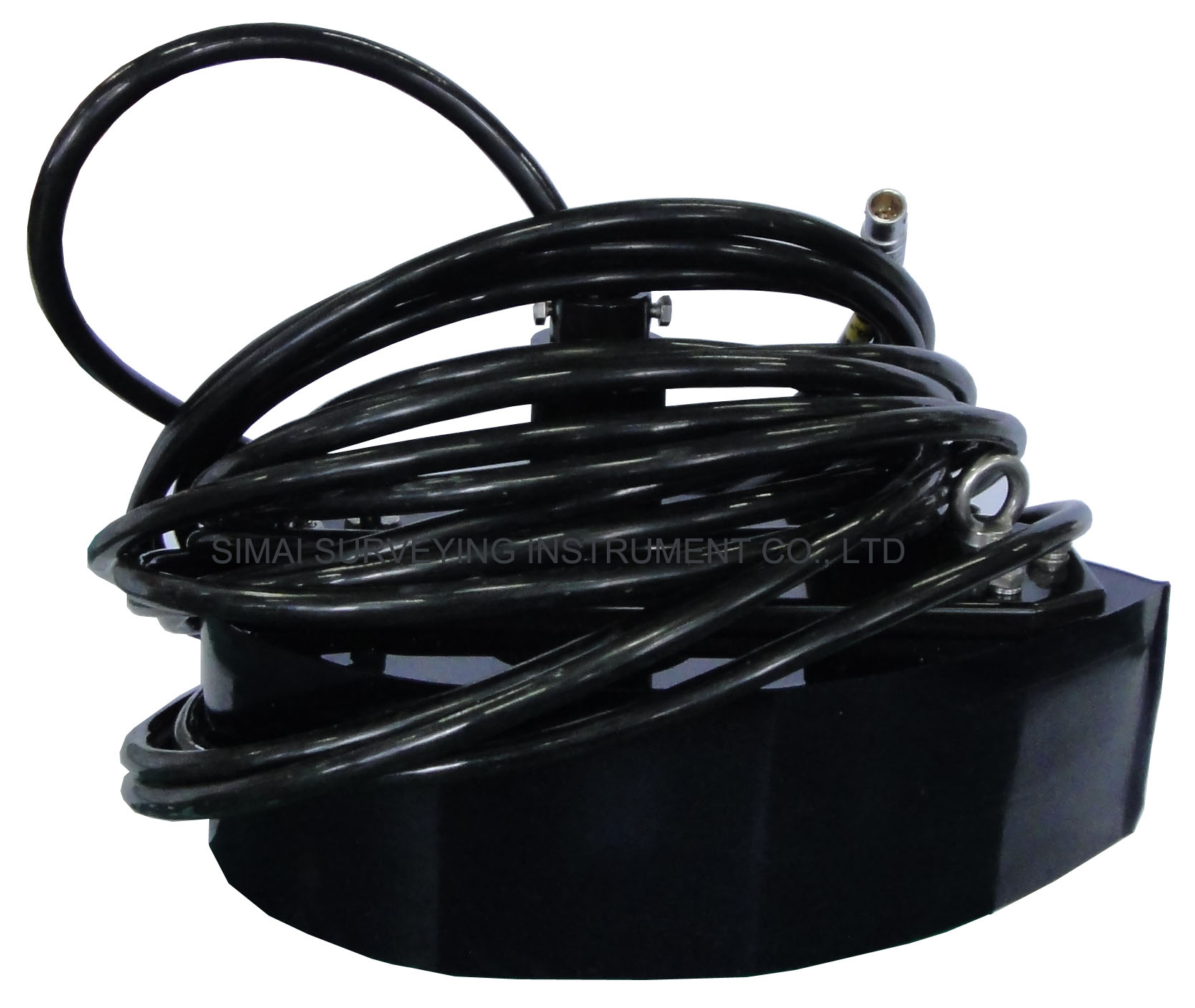

Transducer |
|
Weight |
20kg |
Cable Length |
15m (adjustable) |
Supporting Tube |
|
Dimensions |
3 × 1.5m |
Weight |
13kg |
 |
 |
 |
